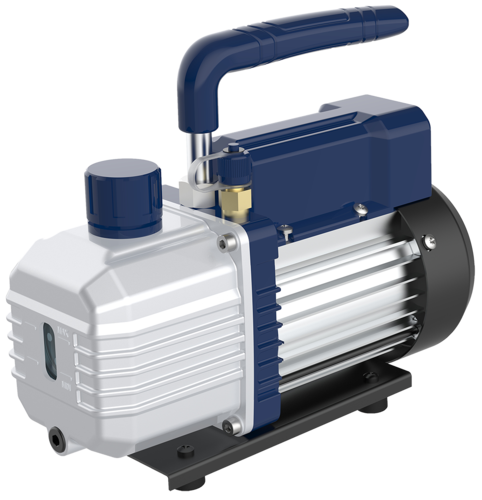

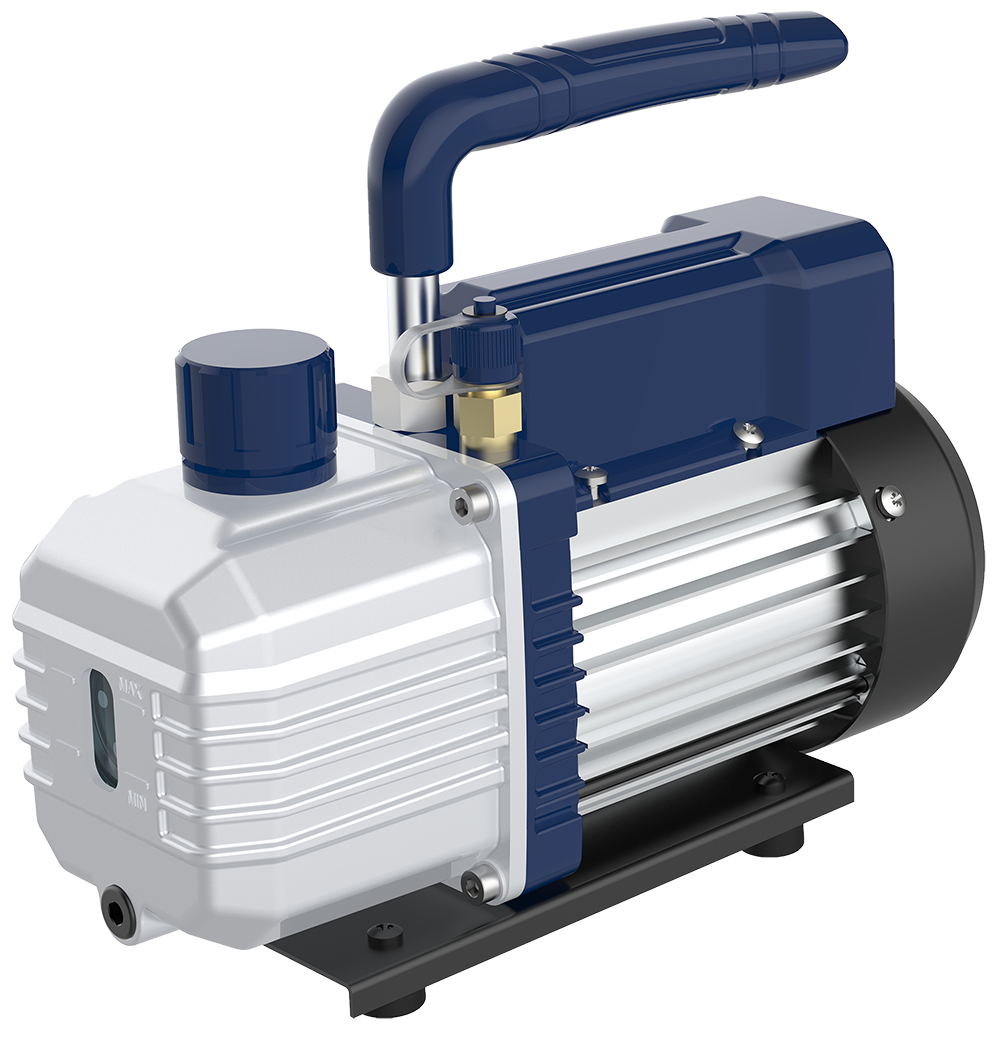

2 Stage Vacuum Pump OVP Series

2 Stage Vacuum Pump OVP Series

Detail



ModelsOVP2DOVP3DOVP5DOVP9DOVP12D
Flow Rate50Hz1.8CFM2.5CFM4.5CFM8.0CFM10CFM
51L/MIN71L/MIN128L/MIN227L/MIN283L/MIN
60Hz2.0CFM3.0CFM5.0CFM9.0CFM12CFM
57L/MIN85L/MIN142L/MIN255L/MIN340L/MIN
Ultimate VacuumPartial Pressure2x10-1Pa2x10-1Pa2x10-1Pa2x10-1Pa2x10-1Pa
Total pressure15Microns15Microns15Microns15Microns15Microns
Power1/4HP1/3HP1/2HP1HP1HP
Inlet Port1/4"SAE1/4"&3/8"SAE1/4"&3/8"SAE1/4"&3/8"SAE1/4"&3/8"SAE
Oil Capacity230ml300ml350ml630ml630ml
Dimensions（mm)244X102X203300X117X248321X126X257389X146X280389X146X280
Weight4.7kg7.8kg8.8kg15.5kg16kg
